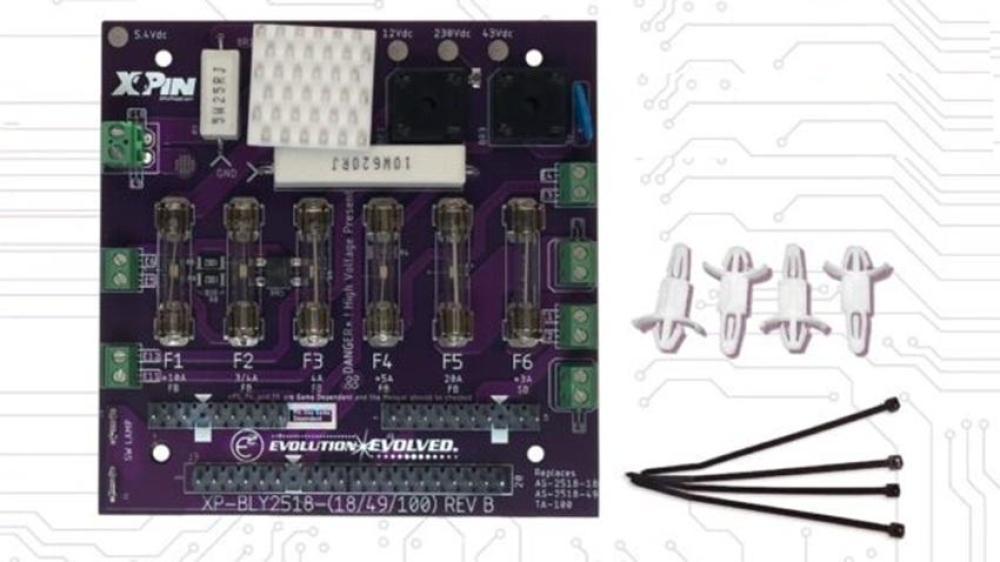

CLASSIC BALLY/STERN RECTIFIER BOARD #AS-2518-18 & #AS-2518-49, #TA 100 (NO SOLDERING)

Product ID: XPIN-0057

$89.95

Overview

Uses Screw Terminals This board does not require soldering !

Replacement Power Supply/Voltage rectifier board used in most early solid state Bally and Stern pinball machines, see game listings below
This board is a direct replacement for the original OEM rectifier boards

Bally part number #AS-2518-18, #AS-2518-49
Stern part number #TA-100 TA100, #A-430

This board requires no soldering, simply cutting the wires off your old board, stripping 1/4" insulation, and installing those wires into the screw terminals

Features:
- 20A Switch Lamp Voltage bridge rectifier
- Manufactured with 2oz copper traces to help with heat dissipation in high current situations
- LED fuse indications underneath every fuse. LED on, Fuse is good
- Screw terminal insertions. NO SOLDERING!
- Ceramic heat spreaders to eliminate bridge heat sinks
- Dedicated Quick Connect blades for XPin Lamp Driver boards LED connections

Key Benefits

All new PCB and components
Manufactured with 2oz copper traces to help with heat dissipation in high current situations
Larger bridge rectifiers for longer term operation
Ceramic heat spreaders dissipates heat better to eliminate standard bridge heat sinks
High Current fuse clips (20A) used throughout
Quality Bel brand fuses
Test points added to check all incoming and outgoing voltages

Features

LED fuse indications underneath every fuse (except main power). LED on: Fuse is good!
NO SOLDERING!! (Screw Terminals)
Dedicated Quick Connect blades for Allteksystems Lamp Driver boards LED connections

Note 1: Space Invaders indicates a 5A Slow blow (not included) should be used for F6.

Note 2: Games using more than two flippers require a higher rated fuse for F4, see your game manual for information

Installation Instructions

Power Supply Notice

Game Listing, Bally

Black Jack

Dolly Parton

Eight Ball

Evel Knievel

Frontier

Freedom

Future Spa

Harlem Globetrotters

Hotdoggin

Kiss

Lost World

Mata Hari
