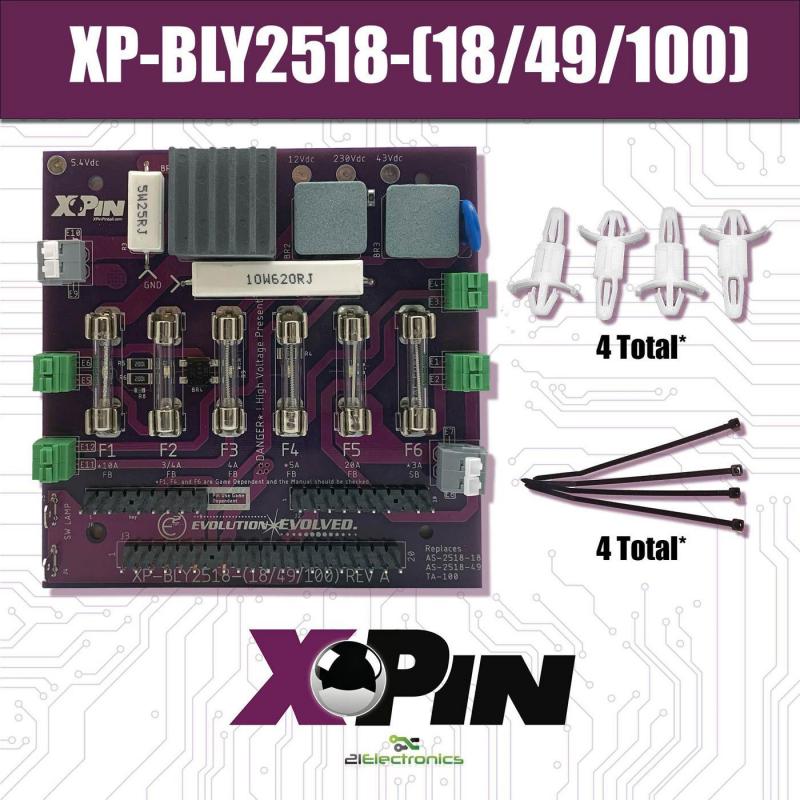

CLASSIC BALLY/STERN RECTIFIER BOARD #AS-2518-18 & #AS-2518-49, #TA 100 (NO SOLDERING)

Product ID: XPIN-0023

$89.95

Overview

This board does not require soldering ! Uses Push Terminals

Replacement Power Supply/Voltage rectifier board used in most early solid state Bally and Stern pinball machines, see game listings below
This board is a direct replacement for the original OEM rectifier boards

Bally part number #AS-2518-18, #AS-2518-49
Stern part number #TA-100 TA100, #A-430

This board requires no soldering, simply cutting the wires off your old board, stripping 1/4" insulation, and installing those wires to the push terminals

Revision changes

Larger 20A bridge and heat sink and increased copper traces for switched lamps
9th pin added to support Future Spa, KISS and Space Invaders
Fuse spacing corrected for better contact (almost all other boards on the market have this wrong!)
High Voltage warning added
Updated fuse information added to board
Standoffs and wire ties now included
Larger connector for E9/E10 wires

Key Benefits

All new PCB and components
Manufactured with 2oz copper traces to help with heat dissipation in high current situations
Larger bridge rectifiers for longer term operation
Ceramic heat spreaders dissipates heat better to eliminate standard bridge heat sinks
High Current fuse clips (20A) used throughout
Quality Bel brand fuses
Test points added to check all incoming and outgoing voltages

Features

LED fuse indications underneath every fuse (except main power). LED on: Fuse is good!
NO SOLDERING!!
Dedicated Quick Connect blades for Allteksystems Lamp Driver boards LED connections

Note 1: Space Invaders indicates a 5A Slow blow (not included) should be used for F6.

Note 2: Games using more than two flippers require a higher rated fuse for F4, see your game manual for information

Installation Instructions

Power Supply Notice

Game Listing, Bally

Black Jack

Dolly Parton

Eight Ball

Evel Knievel

Frontier

Freedom

Future Spa

Harlem Globetrotters

Hotdoggin

Kiss

Lost World

Mata Hari
