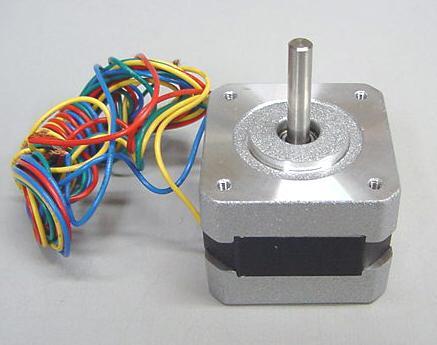

Stepper motor and connector assembly for use on Bally SCARED STIFF spider and Bally WHO DUNNIT slot machine features
This motor does not come with the connector at the end of the wiring harness. You will need to transfer your old connector to the end of the new motor's wiring harness. See below for pinout and look at second picture
Bally #14-8024
Motor specifications:
- Step Angle (degrees) :1.8
- 2 Phase
- Rated Voltage : 12V
- Rated Current : 0.33A
- Holding Torque : 2.3kg*cm
- 5mm Diameter Drive Shaft
- Winding resistance: 32.6 Ω
- Winding inductance: 48 mH
- Max flux linkage: 1.8 Vs
- Maximum Detent Torque: 0.016 N.M
- Total inertia (kg.m.m): 3.5 Kg.m.m
- Total friction (kg.m/s): 4 Kg.m/s

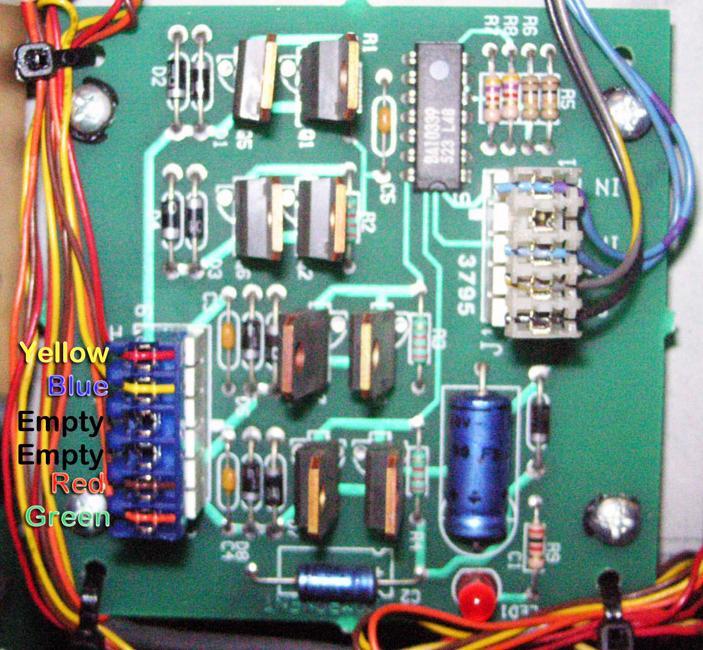

Motor connector pinout:
NEW MOTOR OLD MOTOR
pin 1 - Yellow pin 1 - Red
pin 2 - Blue pin 2 - Yellow
pin 3 - n/c pin 3 - n/c
pin 4 - n/c pin 4 - n/c
pin 5 - Red pin 5 - Brown
pin 6 - Green pin 6 - Orange
Cable length: 12 inches
