For your protection you must select a shipping insurance option from the drop down menu above. The Pinball Wizard packages these sensitive electronics very well. However there is a chance they can be lost or damaged during shipping. We recommend you select this option for your own protection.

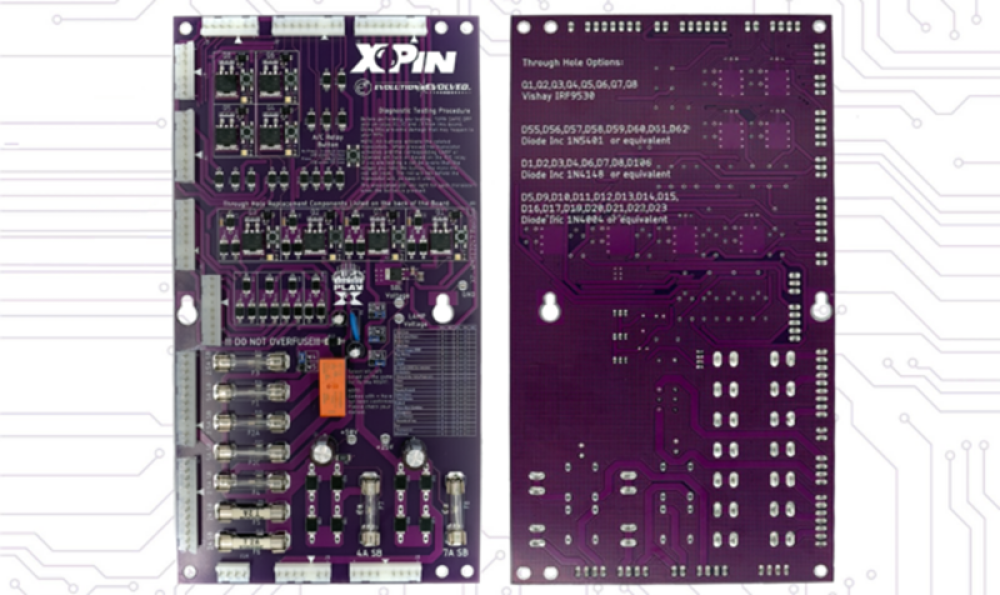

You can decline insurance at your own riskReplacement auxillary power supply for Williams/Bally system 11B and 11C pinball machinesReplaces Williams/Bally #5763-12184-00, #D-12247-xxx (xxx is game number), #D-11813
XPIN #XDB-WMS12247
Please verify the board is correct for your machine and is what you need. Games are listed below that are supported by this board. Replacement boards will not fix a problem in your game if the problem is elsewhere. In the rare case a board is defective, it will be repaired or replaced by the manufacturer
Features include:
- Plug and Play
- Board is manufactured with 2 oz copper to support high current loads
- Circuit design uses MOSFET technology to reduce power consumption and improve reliability when compared to the original TIP36C circuit design. Check out the technical brief below to read the details.
- Professionally assembled in USA for top quality
- 2 Year Manufacturer’s Warranty against all manufacturing defects
Installation Instructions Rev B
Revision B Schematic
Used in the following games:
- Bad Cats
- Bally Game Show
- Banzai Run
- Big Guns *
- Black Knight 2000 *
- Bugs Bunny
- Cyclone *
- Diner *
- Dr. Dude (SYS 11 version only)
- Earthshaker *
- Elvira & the Party Monsters
- Fire!
- Jokerz
- Mousin' Around
- Police Force
- Pool Sharks
- Radical
- River Boat Gambler
- Rollergames *
- Space Station *
- Swords of Fury
- Taxi
- Transporter the Rescue
- Whirlwind *
